제품 소개광섬유 패치 패널

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

중국 Shenzhen Unifiber Technology Co.,Ltd 인증
중국 Shenzhen Unifiber Technology Co.,Ltd 인증
제가 지금 온라인 채팅 해요

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)
High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

큰 이미지 :  High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Unifiber or OEM
인증: ROHS
모델 번호: 1U 선반 장착 구내
결제 및 배송 조건:
최소 주문 수량: 5
가격: 협상 가능
포장 세부 사항: 판지 상자
배달 시간: 5 ~ 8 일
지불 조건: 신용장, 전신환
공급 능력: 500PCS/일
상세 제품 설명
제품 유형: 고정 인클로저 랙 공간: 1U
장착 유형: 랙 마운트 섬유수: 96까지 섬유
재료: 스틸, 파우더 코팅 블랙 설치: 표준 EIA 19" 랙 레일
강조하다:

1U rack mount fiber enclosure

,

tool-less LGX cassette enclosure

,

96 fiber LC patch panel

High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC)

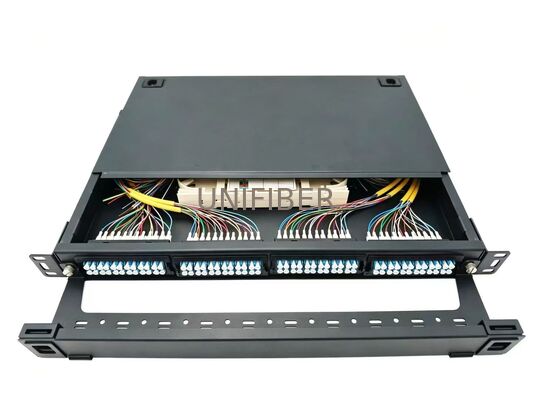

This 1U rack mount fixed fiber enclosure is engineered to accommodate up to 4 LGX cassettes or fiber adapter panels within a single 1U space. Offering a fully modular solution, it provides exceptional versatility for various fiber optic patching, terminating, and splicing applications. The tool-less removable top cover facilitates convenient cable management and maintenance operations. This enclosure serves as an ideal transition point from backbone cabling to distribution switching, interconnect to active equipment, or as a cross-connect/interconnect in main or horizontal distribution areas.
Key Features
  • Tool-less removable top cover for simplified operation
  • Unique one-piece structure enabling fast deployment
  • Modular cabling solution adaptable to different requirements
  • Provides access for high-density patching systems
Applications
  • Data centers and pre-terminated installations
  • Telecommunication networks
  • Storage area networking fiber channel
  • High density architectures
Technical Specifications
Model Number MPB-1U / 2U
Max Capacity 1U - 96~192 Core / 2U - 192~384 Core
Cassettes Compatible 1U - 4* 12/24 Duplex LC | 2U - 8*12/24 Duplex LC
Connector Type MPO MTP LC SC FC ST
Pre-Connection Optional
Material SPCC (Cold Rolled Steel Sheet)
Finishing Powder Coated Matt Black
Dimension (mm) 482.6*363.2*1U/2U
Operation Temperature -20℃ ~ 70℃
High Density 1U Rack Mount Enclosure, Tool-less Removable Top Cover, hold up 4 x LGX Cassetts, 96 Fibers(LC) 0
