제품 상세 정보:
결제 및 배송 조건:
|
| 접속구의 형태: | SC / UPC-SC / UPC | 케이블 피복: | PVC / OFNR) /LSZH |
|---|---|---|---|
| 섬유 번수: | 32 핵심 | 탈주 직경: | 3.0mm |
| 팬-아웃 길이: | 0.3/0.5m 또는 주문을 받아서 만드는 | 파이버 모드: | 단일모드 |
| 제품: | 실내인 32 핵심은 다중 섬유 탈출 광섬유 케이블 SC / UPC-SC / UPC를 사전 종료했습니다 | ||
| 강조하다: | SC / UPC 프리 말단 Cables,1550nm 프리 말단 케이블,LSZH 다중 섬유 브레이크아웃 케이블 |
||

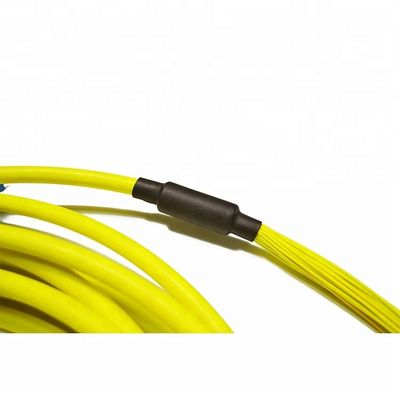

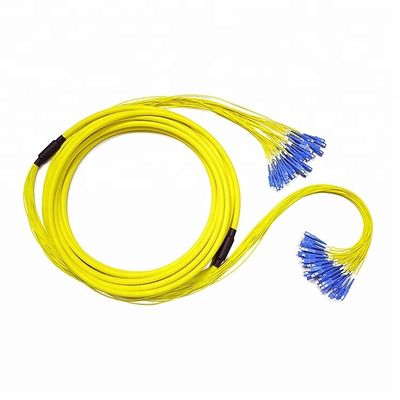

China Supplier Pre terminated multi fiber cable 24 core Single mode SC upc to FC upc patch cord
Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. It always come as 4~144core with LC/SC/FC/ST connectors and 0.9, 2.0, 3.0 break-out legs.
Features
4-48 core 0.9, 2.0, 3.0 break-out leg available
Various connectors are available - LC/SC/FC/ST
Quick & easy installation without special skills, reducing installation time.
Protect the connectors and prevent the cable from twisting during the pull.
Applications
High density cable wiring system
Local/wide area networks
High integrated equiement and devices
Switching between trunk line and distribution line
Specifications
| Connector | SC,LC,FC,ST or Customized | Breakout OD(mm) |
2.0mm
|
| Fiber Mode | 9/125μm | Jacket Color | SM:Yellow/Blue/White; |
| Polish | PC,UPC,APC | Wavelength | SM:1310/1550nm |
| Cable Type | Multi-fibers Breakout 2.0mm unit cable | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
