제품 상세 정보:
결제 및 배송 조건:
|

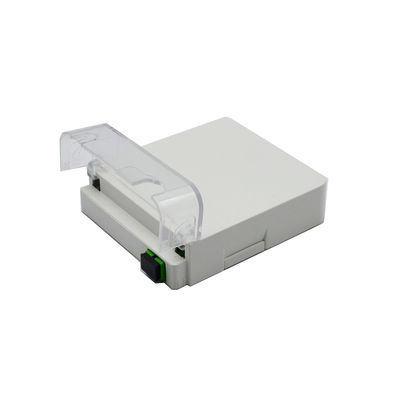

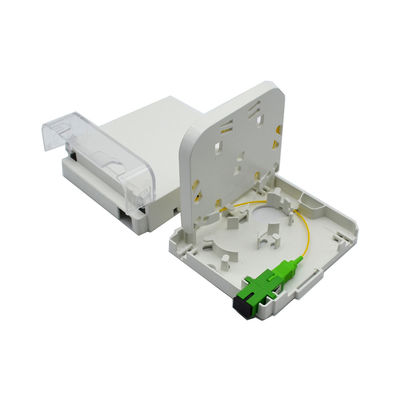

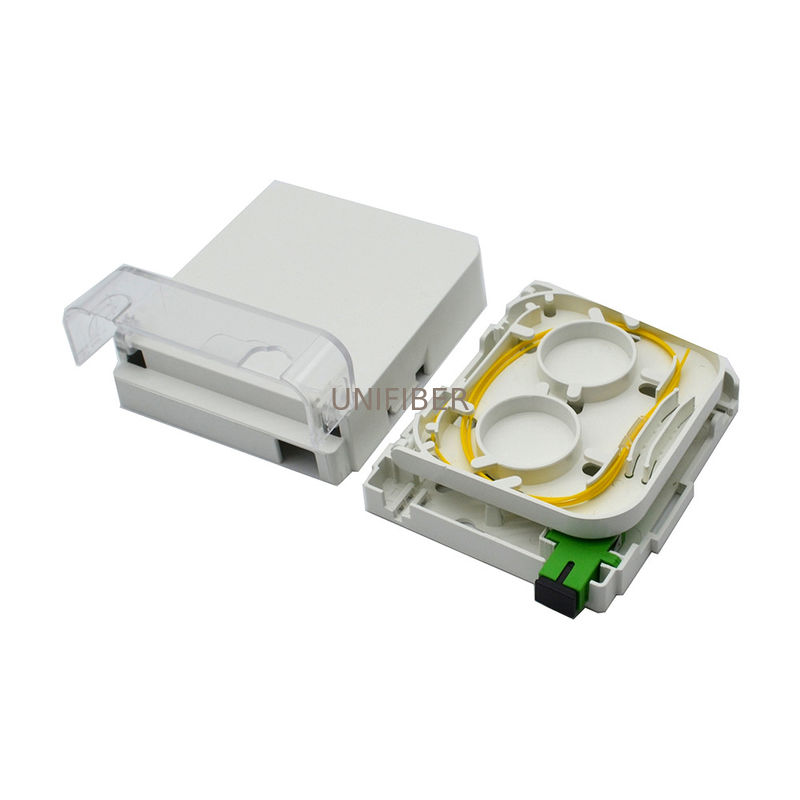

| 제품: | SC / 자동 위상 조정 1 공항 섬유 벽부용 아웃렛 박스 | 항구: | 1개의 항구 |
|---|---|---|---|
| 연결기: | SC / 자동 위상 조정 | 재료: | 아BS 플라스틱 |
| 애플리케이션: | FTTH | 부속품: | 미리 부하에 걸린 땋아 늘인 머리와 어댑터들 |
| 강조하다: | SC APC Fiber Optic Distribution Box,CATV Fiber Optic Distribution Box,FTTH Fiber Optic Wall Mount Enclosures |
||
Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.
Features
Small size and light weight for easy installation
Double-layer design for easy installation and maintenance
Single-core, dual-core fiber adapter can choose
With dust-proof device to prevent dust
With a logo bar, easy to manage number and maintain
Applicable with fiber optic cable or indoor cable
Adapter Type: SC, LC
Using high-quality ABS material, with a certain fireproofing performance
Four cable entry, available from the top, bottom, right side into the line, easy to choose routing
Application:
FTTH access network.
CATV Networks
Local Area Networks
Telecommunication Networks
Data communications Networks
Specification
| Parameter | Value |
| Model | SC/APC 1 Port Fiber Wall Outlet Box |
| Outside Dimension | 115*86*23mm |
| Material | Plastic |
| Color | White |
| Storage of fibers | G.657 fiber |
| Splice capacity | 2 Fiber |
| Splice Method | Fusion splice |
| Adaptor type and count | SC,2SC |
| Input cable | 3mm or Ftth cable(2*3mm) |
