제품 상세 정보:
결제 및 배송 조건:
|
| 생성물: | 이더넷 트랜시버 30m에 대한 10Gbase-T RJ45 섬유 | 전송율: | 이더넷 트랜시버에 대한 섬유 |
|---|---|---|---|
| 케이블: | 고양이 6a/7 케이블 | 거리에 도달하세요: | 30m |
| 연결기: | RJ45 | 인증: | CE RoHS FCC |
| 상표: | 맞춤화될 수 있습니다 | ||
| 강조하다: | 이더넷 트랜시버에 자유 섬유를 이더넷 Transceiver,30m 구리 SFP Transceivers,10Gbase-T 섬유로 이끄세요 |
||

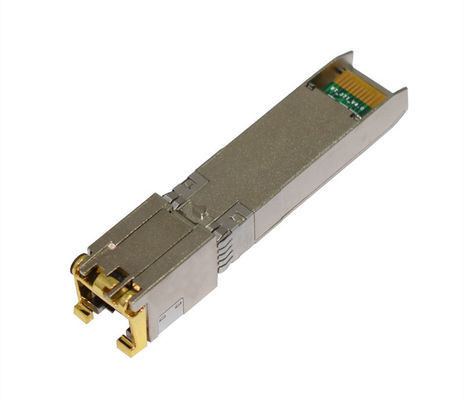

10Gbase-T RJ45 fiber to ethernet transceiver 30m
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication.
Product Features
Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°C
Applications
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other Optical Links
Specification:
| Support | 10Gbase-T / 5Gbase-T / 2.5Gbase-T |
| Compact | Compactnnector assembly |
| RoHS | compliant and lead-free |
| Supply | 3.3V |
| Ambient Operating temperature | 0°C to +60°C |
| Standard | Cable | Reach | Host Port |
| 10gbase-T | CAT6A | 30m | xfi |
| 5Gbase-T/2.5Gbase -t | CAT5E | 50m | 5Gbase - R/2.5GBase-X |
| 1000base-T | CAT5E | 100m | 1000base-FX |
| Pin | Symbol | Name/Description | Ref |
| 1 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
| 2 | TFAULT | Transmitter Fault. Not supported | |
| 3 | TDIS | Transmitter Disable. Laser output disabled on high or open | 2 |
| 4 | MOD_DEF(2) | Module Definition 2. Data line for Serial ID | 3 |
| 5 | MOD_DEF(1) | Module Definition 1. Clock line for Serial ID | 3 |
| 6 | MOD_DEF(0) | Module Definition 0. Grounded within the module | 3 |
| 7 | Rate Select | No connection required | |
| 8 | LOS | High indicates no linked. low indicates linked. | 4 |
| 9 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 10 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 11 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 12 | RD- | Receiver Inverted DATA out. AC Coupled | |
| 13 | RD+ | Receiver Non-inverted DATA out. AC Coupled | |
| 14 | VEER | Receiver Ground (Common with Transmitter Ground) | 1 |
| 15 | VCCR | Receiver Power Supply | |
| 16 | VCCT | Transmitter Power Supply | |
| 17 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
| 18 | TD+ | Transmitter Non-Inverted DATA in. AC Coupled. | |
| 19 | TD- | Transmitter Inverted DATA in. AC Coupled. | |
| 20 | VEET | Transmitter Ground (Common with Receiver Ground) | 1 |
Ordering Information:
| Line Port | Cable | Reach | Host Port |
| 10Gbase-T | CAT6A | 30m | 10GBase-R |
| 5Gbase-T | CAT5E | 50m | 5GBase-R |
| 2.5Gbase-T | CAT5E | 50m | 2.5GBase-X |
| 1000base-T | CAT5E | 100m | SGMII with AN |
| 100base-Tx | CAT5E | 100m | SGMII with AN |
