제품 상세 정보:
결제 및 배송 조건:
|
| 생성물: | 3U 144는 두 부분으로 된 SC 선반 장착 구내 박스를 공동을 만듭니다 | 재료: | 금속에 의하여 냉각 압연되는 강철 |
|---|---|---|---|
| 차원: | 19 " Ｘ 3U 높이 | 연결관: | 이중 SC |
| 색: | 검정 또는 회색 | 설치: | 19 인치의 선반은 증가합니다 |
| 하이 라이트: | 144core Rack Mount Enclosure Box,3U Rack Mount Enclosure Box,19in Drawer Optical Patch Panel |
||

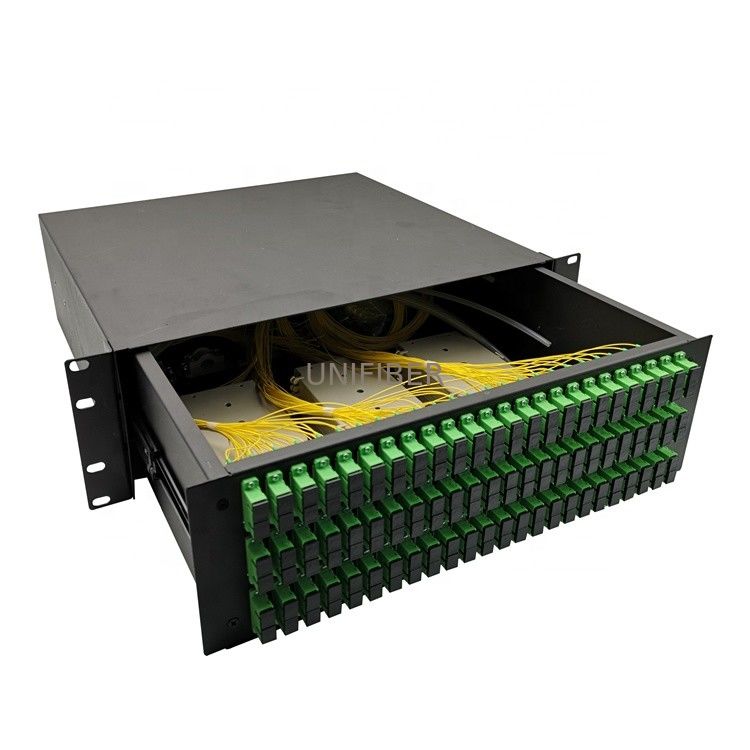

This 3U 144 Core Duplex SC Rack Mount Enclosure Fiber Optic Termination Box/Patch Panel(OTB) is mainly used as terminal equipment of fiber optical cable for optical fiber wiring, fixation, fusion, and patching.
Features:
Capacity: 12-24-36-48-72-96-144 fibers, etc.
19/23inches: 1U to 5U standard installation
Color: Black, White, and grey, or customized
Several adapters can be installed: FC, SC, ST, LC
Cable ports suitable for single, ribbon and bunchy fiber cables
Size: 19 inch X3U X400mm
Application:
Easy to operate and convenient maintenance
Excellent mechanic performance, solid and durable
It is mainly used in the CATV, telecommunication
equipment room and network equipment room.
Specification:
| Name | 3U 144 Core Duplex SC/LC Rack Mount Enclosure Box |
| Height | 3U |
| Capacity | 144 Fibers LC/SC Duplex |
| Material | Cold-rolled Steel |
| Installation | Drawer type Rack-mount |
| Splice Tray Capacity | 12 fibers/tray; 24fibers/tray |
| Size | 19 inch X3U X400mm |
